FEATURES & SPECS

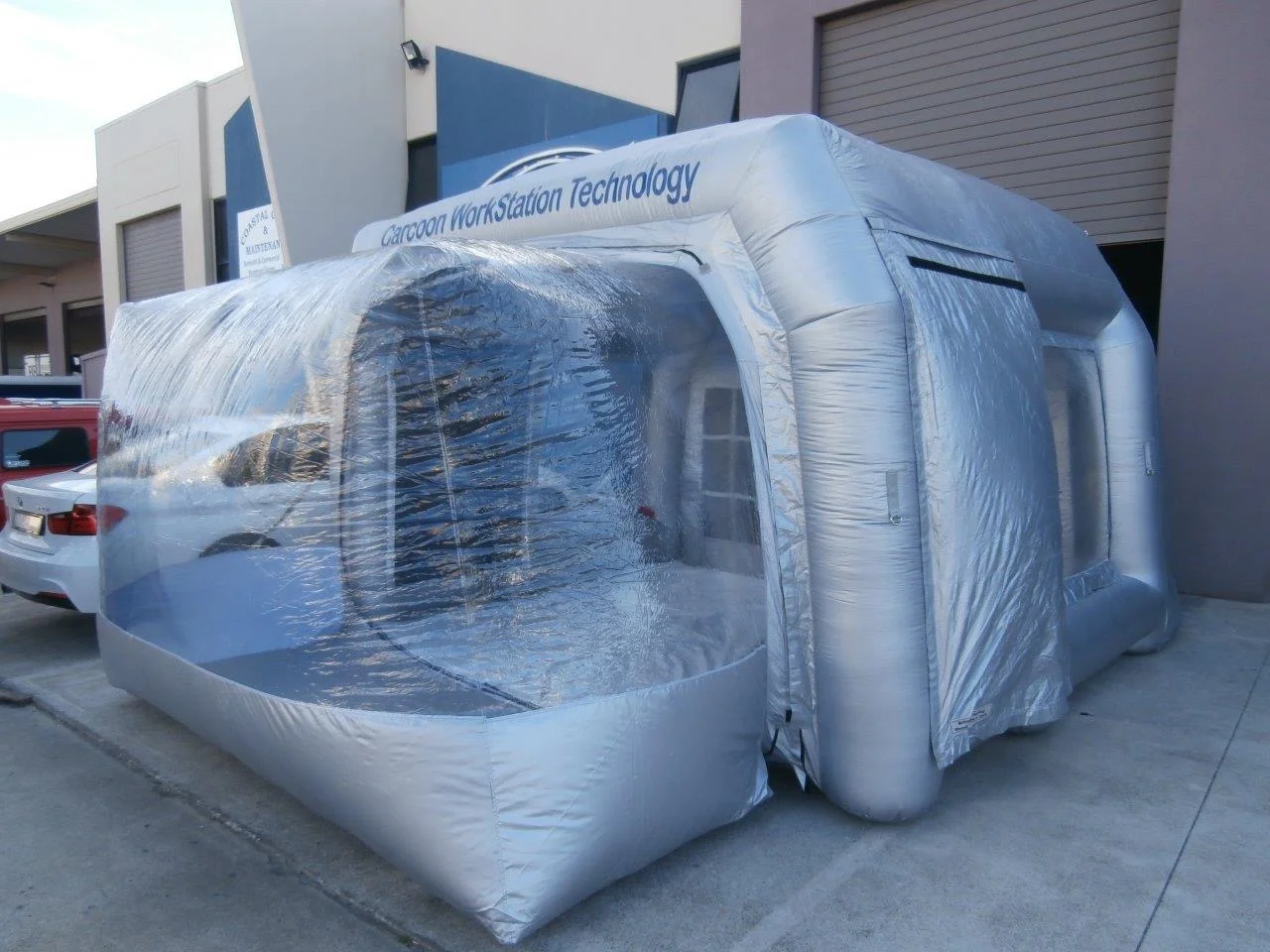

  • Cross flow ventilated mobile Spray Booth
  • Designed to help the S.M.A.R.T.(mobile) Repairer comply with Health and Safety and Environment Protection
  • Designed to improve working conditions and productivity.
  • Workspace – 3.0m x 3.4m, 2.0m high access
  • Workspace volume 24 cubic meters
  • Total footprint 4.0m x 4.4m, 2.4m High
  • Weight 48kg, Fan units 15Kg & 17kg, optional Hardcase storage box 10kg.

MATERIALS

  • Glass clear PVC
  • Light weight specially coated Nylon and Polyester
  • Heavy duty PVC coated polyester base material
  • Splash proof coil type zippers.

AIR SUPPLY

  • Pressure fan, 4.2 Amp 1 H.P 1010 CFM- 44x35x47 weight 17.2Kg
  • Max Air Supply 1/3 H.P 2860CFM 3 speed 50Hz 230 Volt 1130 watts – size 45x47x47cm weight 15.4Kg
  • Input Filters : surface area 2.79 sqm
  • Type : G4 synthetic media
  • Exhaust filter trap : surface area 3.0 sqm
  • Type : Synthetic Media Paint Arrest
  • Activated Carbon return to atmosphere
  • Type : Carbotec RT20 Foam
